Xpert EX6NCD-CF 6.5" Coax (Pair)
Xpert EX6NCD-CF 6.5" Coax (Pair)
Xpert EX6NCD-CF 6.5" Coax (Pair)
Xpert EX6NCD-CF 6.5" Coax (Pair)
Xpert EX6NCD-CF 6.5" Coax (Pair)
Xpert EX6NCD-CF 6.5" Coax (Pair)

Xpert EX6NCD-CF 6.5" Coax (Pair)

$799.98
/
XPERT EX6NCD-CF

EX6NCD-CF : 6.5 in. 2-Way NEO Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver

Elevate your audio experience with the XPERT EX6NCD-CF, a 6.5-inch speaker built for precision and durability. Featuring a Neodymium Magnet Assembly, rear-mounted full-sized compression driver, and an IP54-rated weather-resistant carbon fiber cone, it ensures exceptional sound clarity and resilience. The die-cast aluminum basket with radial venting, wide dispersion conical HF waveguide, and 12dB passive crossover guarantee smooth audio performance. With a 60Hz–20KHz frequency response, 5.2Ω impedance, and protective grills, the EX6NCD-CF combines advanced engineering with powerful sound delivery in a compact design.

FEATURES:

  • 6.5″ 2-Way Carbon Fiber Loudspeaker
  • 2.0″ (51mm) Midrange Voice Coil
  • 10 Neodymium Ring Magnet Assembly
  • Rear Mounted Full Sized Compression Driver
  • IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
  • Die-Cast Aluminum Basket with Radial Venting
  • 1.4″(36mm) Polyester Tweeter Diaphragm
  • Wide Dispersion Conical HF Waveguide
  • 12dB Passive Crossover Included
  • Protective Grills Included



SPECIFICATIONS:

Resonant Frequency (fs) 61.2Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 4.82
Electrical Quality Factor (Qes) 0.32
Total Quality Factor (Qts) 0.30
Compliance Equivalent Volume (Vas) 6.3L
Mechanical Compliance (Cms) 0.28 mm/N
Nominal Impedance 4Ω
Power Handling 400 Watts
Dynamic Wattage 800 Watts
Sensitivity (1w/1m) 105.7 dB
Voice Coil Diameter 2.0″ (51mm)

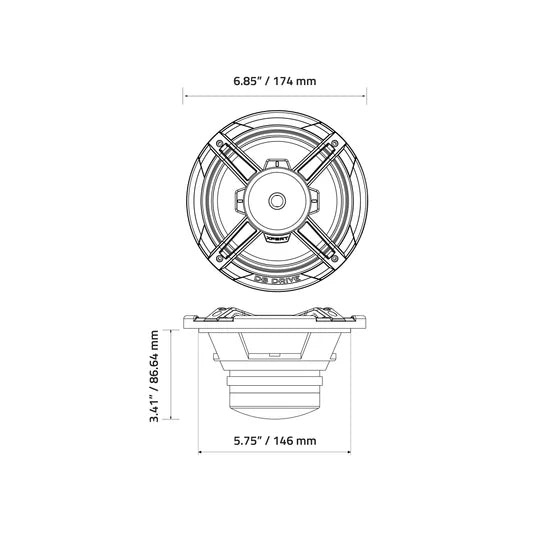

DIMENSIONS:

Mounting Depth 3.41"/ 86.64mm
Cutout Diameter 5.75"/ 146mm



(SOLD AS PAIR)
