Xpert EX6NCD Coax 6.5" (Pair)

XPERT EX6NCD

EX6NCD : 6.5 in. 2-Way NEO Loudspeaker W/ Back Mounted Compression Driver

Turn up the sound with XPERT's EX6NCD, a 6.5-inch speaker that delivers clarity and power. Equipped with a neodymium ring magnet assembly and rear-mounted full-sized compression driver, it ensures impeccable audio. The IP52-rated paper cone with treated cloth surround and die-cast aluminum basket with radial venting offer durability and cooling under pressure. With a 1.4” polyester tweeter diaphragm, wide dispersion conical HF waveguide, 80Hz–20KHz frequency response, and 2” voice coil, the EX6NCD is crafted for peak performance and a rich soundstage.

FEATURES:

• 2″ (51mm) Midrange Voice Coil
• Neodymium Ring Magnet Assembly
• Rear Mounted Full Sized Compression Driver
• IP52 Rateed Paper Cone With Treated Cloth Surround
• Die-Cast Aluminum Basket With Radial Venting
• 1.4″ (36mm) Polyester Tweeter Diaphragm
• Wide Dispersion Conical HF Waveguide
• 12dB Passive Crossover Included
• Protective Grills Included



SPECIFICATIONS:

Resonant Frequency	61.2Hz
D.C. Voice Coil Resistance (Re)	5.2Ω
Mechanical Quality Factor (Qms)	4.82
Electrical Quality Factor (Qes)	0.32
Total Quality Factor (Qts)	0.30
Compliance Equivalent Volume (Vas)	6.3L
Mechanical Compliance (Cms)	0.28 mm/N
Nominal Impedance	5.2Ω
Power Handling	400 Watts
Dynamic Wattage	800 Watts
Sensitivity (1w/1m)	105.7 dB
Voice Coil Diameter	2.0″ (51mm)

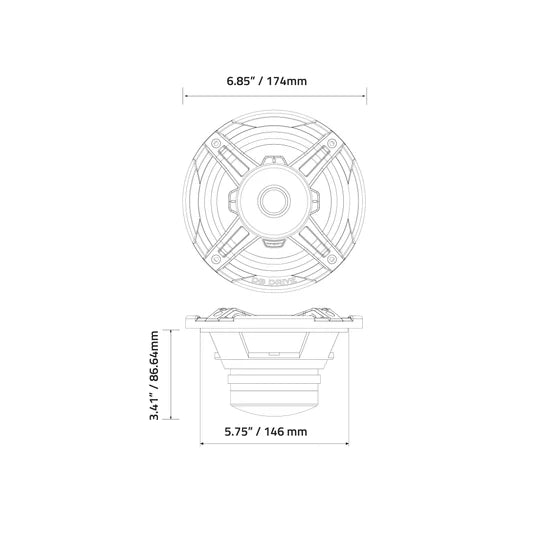

DIMENSIONS:

Mounting Depth	3.41"/ 86.64mm
Cutout Diameter	5.75"/ 146mm



(SOLD AS PAIR)
