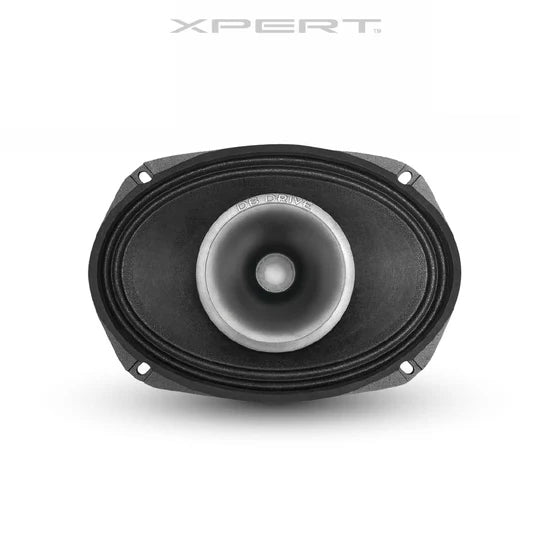

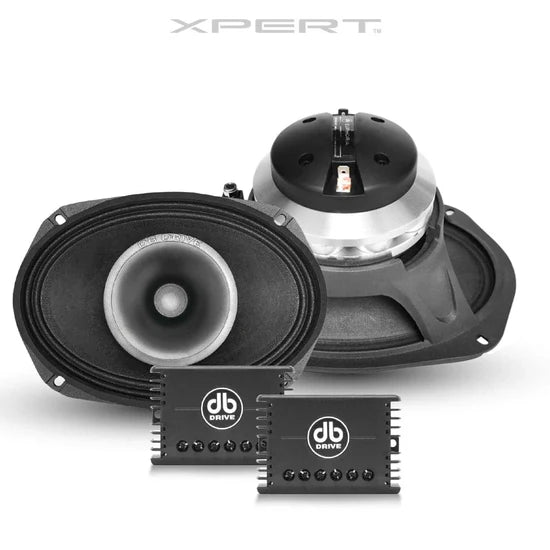

EX69NCD : 6X9" 2-Way NEO Loudspeaker W/Rear Loaded Compression Driver

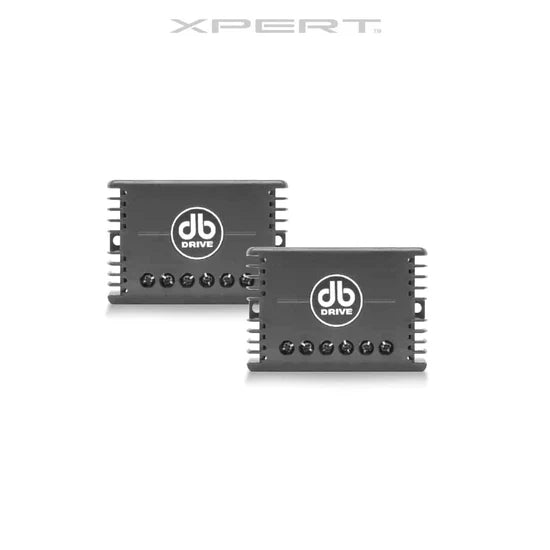

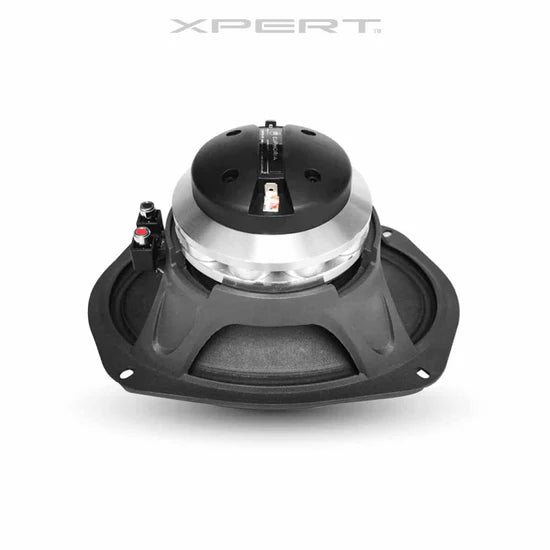

The EX69NCD redefines audio performance with cutting-edge innovation and precision engineering. Featuring a Neodymium Ring Magnet Assembly and Rear Mounted Compression Driver, it delivers exceptional clarity and depth. Built for durability, it boasts an IP52-rated paper cone, treated cloth surround, and die-cast aluminum basket with radial venting. With a 1.4” polyester tweeter diaphragm, 2” voice coil, and wide dispersion waveguide, sound remains balanced and immersive. A 12db passive crossover and 5.2Ω impedance ensure accuracy and efficiency, making the EX69NCD the ultimate choice for premium sound.
KEY FEATURES:
SPECIFICATIONS:
| Resonant Frequency (fs) | 78.1Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 10.75 |
| Electrical Quality Factor (Qes) | 0.35 |
| Total Quality Factor (Qts) | 0.34 |
| Compliance Equivalent Volume (Vas) | 10.6L |
| Mechanical Compliance (Cms) | 0156 mm |
| Nominal Impedance | 4Ω |
| Power Handling | 500 Watts |
| Dynamic Wattage | 1000 Watts |
| Sensitivity (1w/1m) | 93.4 dB |
| Voice Coil Diameter | 2.0″ (51mm) |

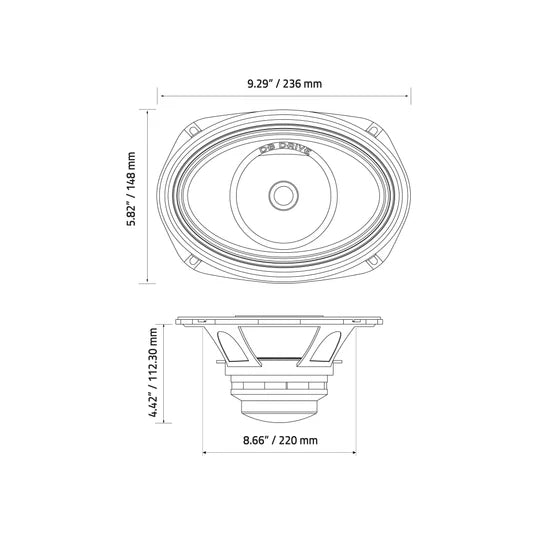

DIMENSIONS:
| Mounting Depth | 4.42" / 112.30 mm |
| Cutout Diameter | 5.82" x 8.66” /148mm x 220.42mm |
(SOLD AS PAIR)
