EX100.4 : 4 Channel Full Range Class D Amplifier
Upgrade your audio system with the XPERT EX100.4, a high-performance 4-channel Class D amplifier engineered for motorcycle and space-limited applications. Designed for high-output clarity, this amplifier seamlessly powers tweeters, compression drivers, and midranges with dynamic sound reproduction.
Key Features:
SPECIFICATIONS:
| Rated Power @14.4 Volts - 1% THD | 4 x 50 Watts @ 4 Ohm |
| 4 x 100 Watts @ 2 Ohm | |
| 2 x 200 Watts @ 4 Ohm (Bridged) | |
| Frequency Response | 10Hz - 20KHz |
| S/N Ratio | < 85dB |
| Working Voltage | 10 - 16 Volts |
| Damping Factor | @ 4 Ohm > 57/ 1KHz |
| Low Level Input | 6V - 0.2V |
| Ch 1/2 High Pass Filter Variable | 20Hz - 5KHz |
| Ch 1/2 Low Pass Filter Variable | 50Hz - 5KHz |
| Ch 3/4 High Pass Filter Variable | 20Hz - 5KHz |
| Ch 3/4 Low Pass Filter Variable | 50Hz - 5KHz |
| Minimum working Impedance | 2 Ω Stereo |

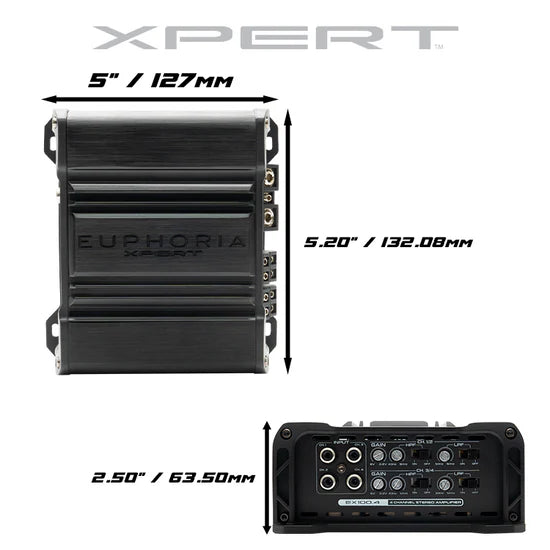

DIMENSIONS:
| Length | 5" / 127mm |
| Width | 5.20" / 132.08mm |
| Height | 2.50" / 63.50mm |
Take your sound system to the next level with the XPERT EX100.4, where power meets precision. Order yours today for an enhanced audio experience!
