EX300.4 4-Channel Class D amplifier
Upgrade your audio system with the XPERT EX300.4, a compact yet powerful full-range Class D amplifier, designed for motorcycle and space-limited applications. This high-output amplifier effortlessly powers tweeters, compression drivers, and midranges with precision and clarity.
Key Features:
SPECIFICATIONS:
| Rated Power @ @14.4 Volts - 1% THD | 4 x 300 Watts @ 4 Ω |
| 4 x 500 Watts @ 2 Ω | |
| 2 x 600 Watts @ 4 Ω (Bridged) | |
| Frequency Response | 10Hz - 20KHz |
| S/N Ratio | < 95dB |
| Working Voltage | 10-16 Volts |
| Damping Factor @ 4 Ohm | > 114/1KHz |
| Low Level Input | 6V – 0.2V |
| Ch 1/2 High Pass Filter Variable | 20Hz - 5KHz |
| Ch 1/2 Low Pass Filter Variable | 50Hz - 5KHz |
| Ch 3/4 High Pass Filter Variable | 20Hz - 5KHz |
| Ch 3/4 Low Pass Filter Variable | 50Hz - 5KHz |
| Minimum working Impedance | 1 Ohm |

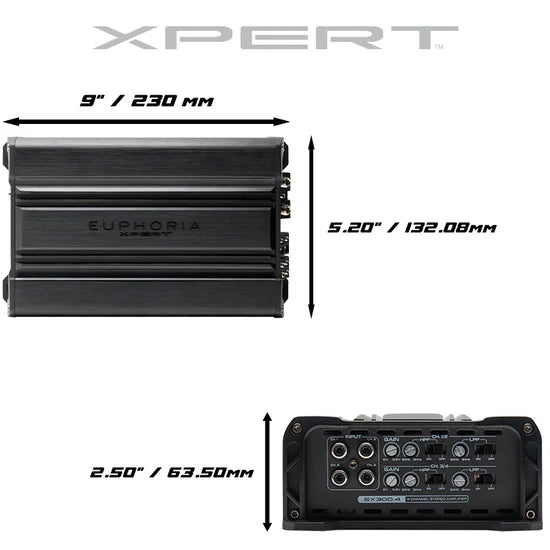

DIMENSIONS:
| Length | 9" / 230mm |
| Width |
5.20" / 132.08mm |
| Height | 2.50" / 63.50mm |
Take your sound system to the next level with the XPERT EX300.4, where power, precision, and reliability combine for unparalleled performance. Order yours today!
