Euphoria EWXC12D4 12" Sub

Euphoria EWXC12D4 12" Sub

$649.95
/

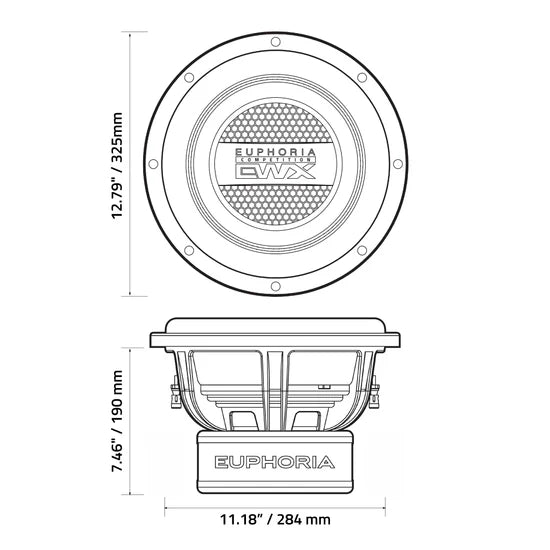

Outside Diameter (A) 12.79″ (325mm)
Cutout Diameter (B) 11.18″ (284mm)
Mounting Depth (C) 7.46″ (189.5mm)
GENERAL SPECIFICATIONS
Structure 12″ (30.48cm) Woofer
Dynamic Power Handling 4000 Watts
Nominal Power Handling 2000 Watts
Impedance Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs) 34.632Hz
D.C. Voice Coil Resistance (Re) 3.6Ω + 3.6Ω
Mechanical Quality Factor (Qms) 4.912
Electrical Quality Factor (Qes) 1.088
Total Quality Factor (Qts) 0.891
Equivalent Air Volume to Cms (Vas) 26.084 L
Mass of Diaphragm/Coil (Mms) 314.235 g
Force Factor (Bl) 20.056 N/A
Sound Pressure Level (SPL)

Woofer Cut-out11.18″ (283.9mm)Mounting Depth8.97″ (227.8mm)Sealed Box1.9 ft3 (53.80L)Vented Box3.27 ft3 (92.59L)Vent Area38 in2 (245.16 cm2)Vent Length24″ (60.96cm)Tuning35HzDynamic Power4000 WattsNominal Power2000 Watts
