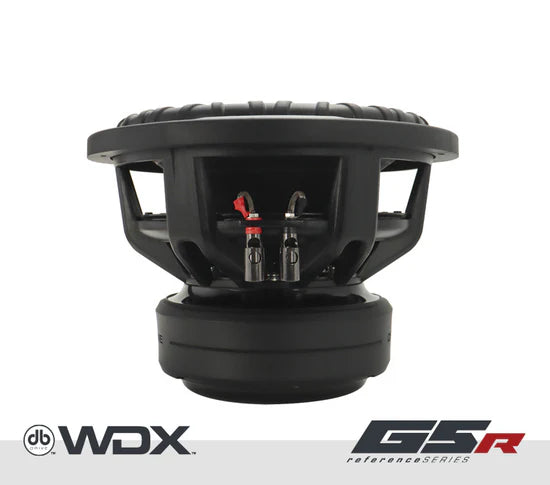

DB Drive WDX12G5 12" Dual 2Ω or 4Ω Subwoofer

DB DRIVE WDX12G5R

WDX12G5R : 12 in. Dual 2Ω or 4Ω Subwoofer

The WDX12G5R subwoofer is built for bass enthusiasts seeking precision and power. With a custom mounting gasket to eliminate rear-canceling waves, a custom-tooled aluminum basket for optimal heat dissipation, and a high-excursion motor with Y35 ferrite magnets, it delivers distortion-free, deep bass. Featuring 6000W dynamic power handling (3000W nominal), ribbed surround, and high-temperature voice coils, this subwoofer sets a new standard for impactful sound.

FEATURES:

• 3.0″ 4 layer Anodized aluminum high temperature voice coil
• Non-Pressed paper cone
• Double-stitched reinforced foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover



SPECIFICATIONS:

Dynamic Power Handling	6000 Watts
Nominal Power Handling	3000 Watts
Impedance	Dual 2Ω Voice Coil
Resonant Frequency (fs)	38.99Hz
D.C. Voice Coil Resistance (Re)	2 x 2Ω
Mechanical Quality Factor (Qms)	4.166
Electrical Quality Factor (Qes)	0.606
Total Quality Factor (Qts)	0.529
Equivalent Air Volume to Cms (Vas)	21.01 L
Mass of Diaphragm/Coil (Mms)	317.437 kg
Force Factor (Bl)	22.649
Sound Pressure Level (SPL)	85.0 dB



DIMENSIONS:

Outside Diameter	12.95″ (329mm)
Cutout Diameter	11.18″ (284mm)
Mounting Depth	8.01″ (203.5mm)



(SOLD AS A SINGLE)
