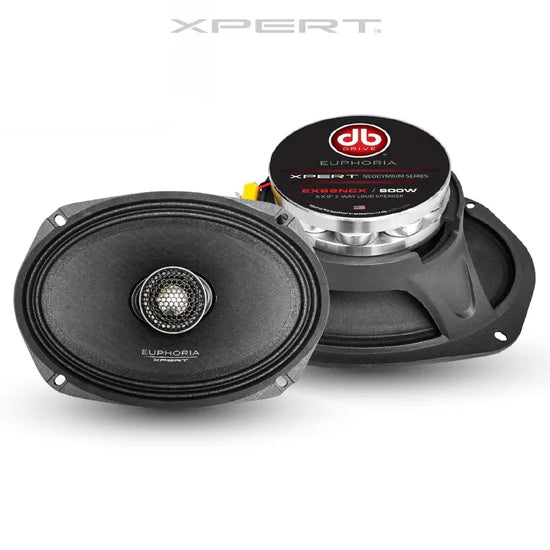

Euphoria Xpert EX69NCX Coax 6x9 (Pair)

Euphoria Xpert EX69NCX Coax 6x9 (Pair)

Regular price $449.98
/

  • 6″x9″ 2-Way Loudspeaker
  • 1.5″ (38.1mm) Midrange Voice Coil
  • 10 Neodymium Ring Magnet Assembly
  • IP52 Rated Weather Resistant Paper Cone with Cloth Surround
  • Die-Cast Aluminum Basket with Radial Venting
  • Wide Dispersion 1.25″ (28mm) Aluminum Dome Tweeter
  • T/S PARAMETERS
    Resonant Frequency (fs) 92.1Hz
    D.C. Voice Coil Resistance (Re) 3.2Ω
    Mechanical Quality Factor (Qms) 5.78
    Electrical Quality Factor (Qes) 0.33
    Total Quality Factor (Qts) 0.31
    Compliance Equivalent Volume (Vas) 12.2L
    Mechanical Compliance (Cms) 018 mm/N
    Efficiency (1W/1M) 96.5 dB
    ADDITIONAL SPECS
    Nominal Impedance
    Power Handling 400 Watts
    Dynamic Wattage 800 Watts
    Sensitivity (1w/1m) 96.5 dB
    Voice Coil Diameter 1.5″ (38.5mm)

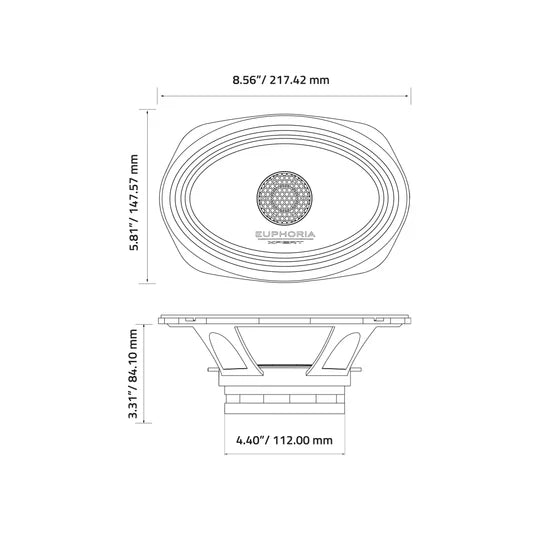

    DIMENSIONS
    Mounting Depth: 3.31″ (84.10mm)
    Mounting Diameter: 5.81 x 8.56″ (147.57mm x 2170.42mm)



    **SOLD AS PAIR**
