Euphoria Xpert EX69NPS-CF
Regular price $549.99
- 1.5″ (38.1mm) Midrange voice coil
- High-intensity NEO ring magnet
- IP65 rated weather resistant Carbon fiber cone
- Cloth surround
- Stamped steel basket
- Wide dispersion 1″ aluminum dome tweeter
- Protective gril
-

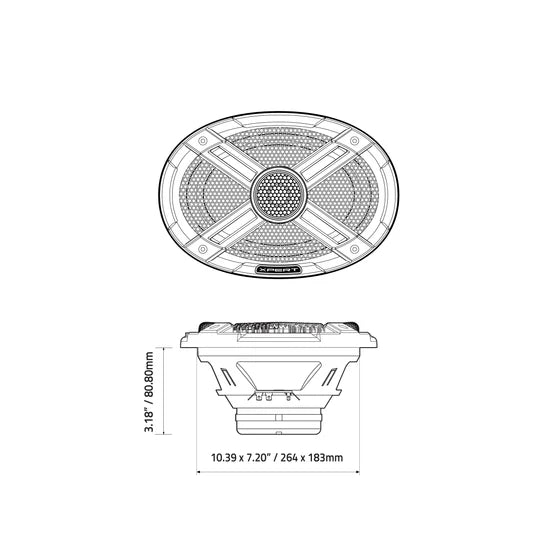

T/S PARAMETERS Resonant Frequency (fs) 68.8Hz D.C. Voice Coil Resistance (Re) 3.2Ω Mechanical Quality Factor (Qms) 9.95 Electrical Quality Factor (Qes) 0.44 Total Quality Factor (Qts) 0.42 Compliance Equivalent Volume (Vas) 14.1L Mechanical Compliance (Cms) 0.20 mm/N REPLACEMENT DIAPHRAGM: ADDITIONAL SPECS Nominal Impedance 4Ω Power Handling 400 Watts Dynamic Wattage 800 Watts Sensitivity (1w/1m) 92 dB Frequency Response 77Hz – 19KHz DIMENSIONS Mounting Depth: 3.18″ (80.80mm) Cutout Diameter: 8.66 x 6.45” / 220 x 164mm
